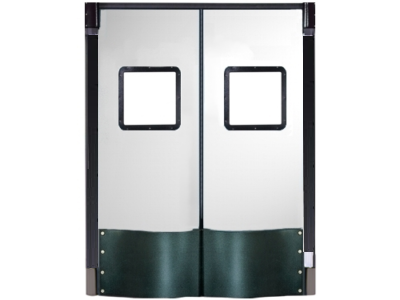

Proline doors are designed for strength and durability in abusive applications. They provide visual separation, sound attenuation and thermal separation. The doors can be manufactured to fit virtually any size opening. The door is designed to comply with all USDA sanitation requirements and is insulated.
Features
Door Panel
The 400i is constructed with a 1.5” thick composite wood core with foam inserts and either a .032” thick tempered aluminum alloy panel with a satin anodized finish or a full-length stainless steel panel on both sides.
Spine
Black powder-coated aluminum spine provides additional reinforcement to enhance the strength of the door.
Gasketing
Full perimeter replaceable gaskets are provided with the door and stand up to heavy traffic while providing a positive seal for thermal separation.
Hinge
Patented v-cam hinging system has a 240° hinge that swings 120° in each direction, wide enough to allow the entire door and bumper to completely clear the opening.
Window & Frames
Standard 10" x 16" double pane clear polycarbonate with ABS frame. Additional options available.
Options
- Windows
- Bumpers
- Hinge Guard
- Impact Plate (Stainless Steel, Galvanized Steel, or ABS)
Of Note
- USDA Accepted
Designs and Colors
Disclaimer: Due to the variety in computer monitors, and lot to lot raw material variations these colors may not show an exact representation. Actual samples should always be requested if color accuracy or matching is key to your decision.
